| Brand Name: | HACEN |
| MOQ: | 5000PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | Depends on the cavities and toolings |

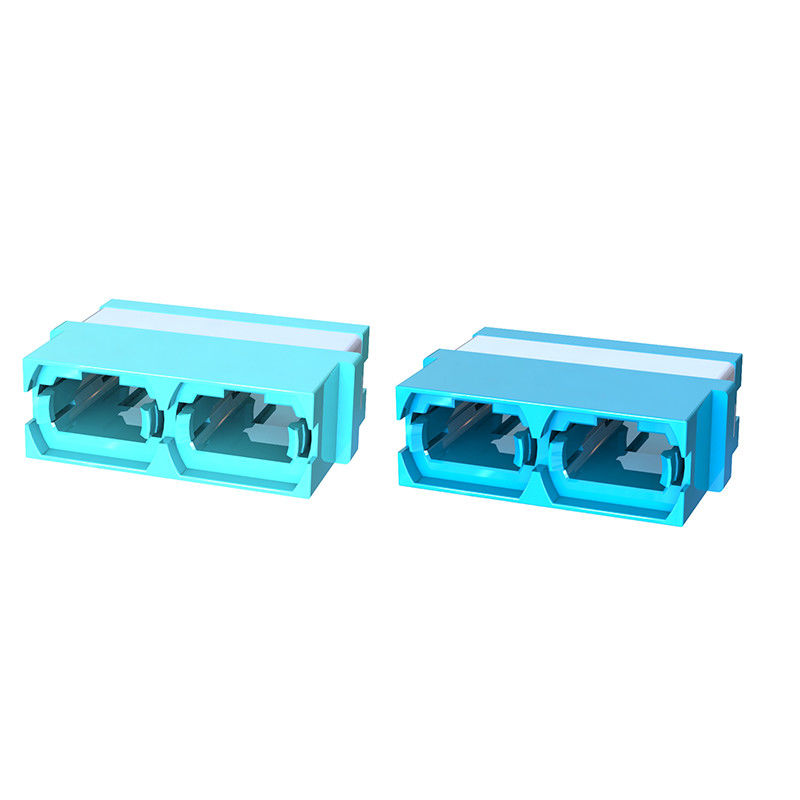

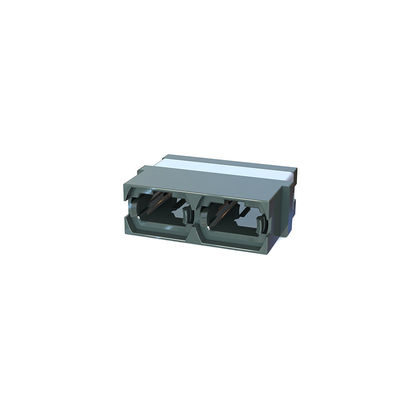

Flangeless MPO Fiber Optic Adapter for Easy Mating Durability and Low Loss
Please note that this document is for reference purposes only and may not fully correspond to the actual product. To ensure accuracy and prevent any information leakage .please contact us directly for the correct documentation.
Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- For end-to-end fiber cable connectivity
- Good interchangeability
Applications
- CATV
- Active device termination
- Telecommunication networks
- Local Area Networks (LANs)
- Wide Area Networks (WANs)
-Test equipment
Environmental & Mechanical Data
| Operating Temperature | -40 to +75º C |
| Storage Temperature: | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High temperature (61300-2-18) | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat (61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
| Adapter Material | Plastic |
| Adapter Color | Black,Blue,Green,Aqua, |
FAQ
1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection
2. How can we guarantee quality?
From raw materials to final shipment, we can offer inspection report or related certifications.
3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,
4. What materials are we using ?
TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.
5. Do you support customization?
Yes , both OEM and ODM are available.
