| Brand Name: | HACEN |
| MOQ: | 5000PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | Depends on the cavities and toolings |

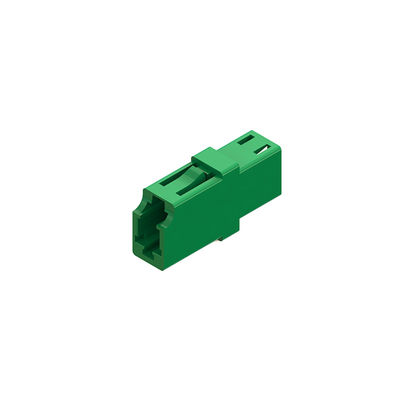

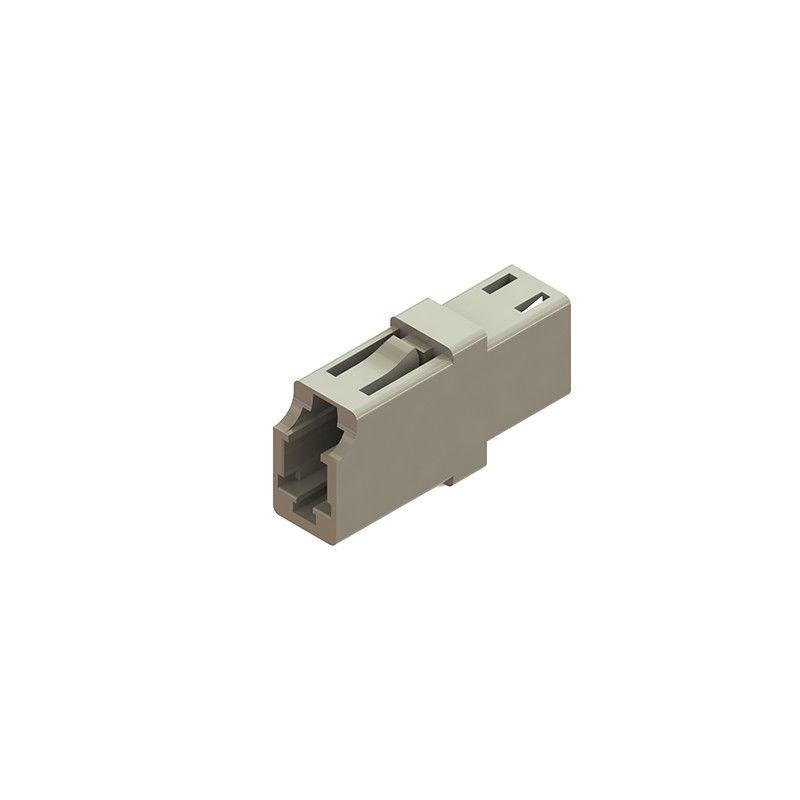

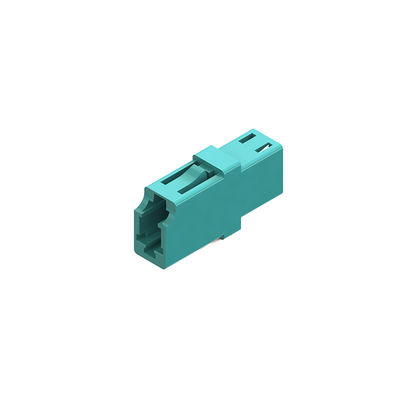

LC LC fiber optic cable adapter flangeless in Communication Equipment
LC fiber optic adapter, also called a fiber optic coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
Fiber Optic Adapters are an important component in a fiber optic network; they are used in a fiber optic patch panel or any other outlet to connect two connectors. Fiber Optic adaptors are available for all standard connector types in both singlemode and multimode including Simplex and duplex versions. Our fiber optic adapters are made with high precision machines which ensure precise alignment for the connectors when they are plugged in.
Features
-100% tested on optical performance (Insertion Loss & Return Loss)
-End-face geometry requirement complies to Telcordia GR-326-CORE
-For end-to-end fiber cable connectivity
- Coloured for easy indentification
-Low insertion and return loss and back reflection
-Good repeatability
Environmental & Mechanical Data
| Operating Temperature | -40 to +75º C |
| Storage Temperature: | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High temperature (61300-2-18) | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat (61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
| Adapter Material | Plastic |
| Adapter Color | Black,Blue,Green,Aqua, |
FAQ
1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also you can set up new mold with us. We offer service from mold design to final plastic molding injection
2. How can we guarantee quality?
From raw materials to final shipment, we can offer inspection report or related certifications.
3. Why us ?
We focus on the fiber optical components for over 15 years , such as adapters, connectors and ONU boxes . experienced in molding injection for over 20years like consumer plastic ,auto plastic ,
4. What materials are we using ?
TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others too.
5. Do you support customization?
Yes , both OEM and ODM are available.
