| Brand Name: | HACEN |
| Model Number: | MPO |
| MOQ: | 5000PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, , Western Union |
| Supply Ability: | Depends on the cavities and toolings |

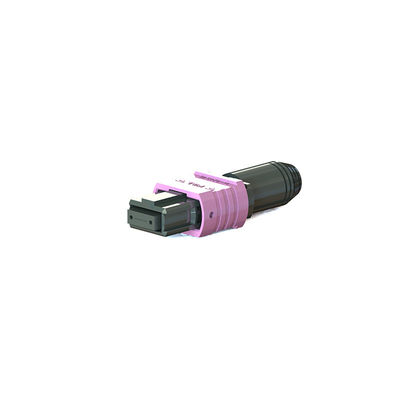

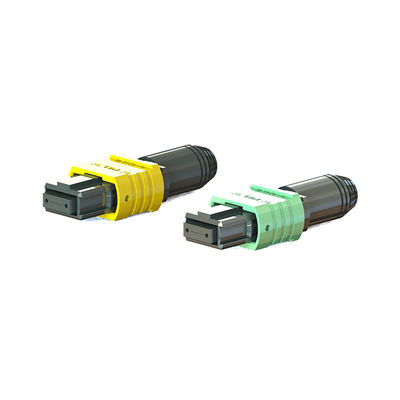

MPO Fiber Connector mini Version 36mm Length 12/16/24 Cores Male/Female Options
The MPO Fiber connector is one of the most basic passive components in the optical fiber communication.There are different ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose.Through the process of curing and polishing…etc, the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks.
Availablity
- The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
- Housing kits with /without ferrule are available
Features
- Low insertion loss and high return loss
- Strong environment and high temperature stability
- Excellent interchangeability and repeatability
Applications
- Data transmission network
- Fiber Optic Patch Cord & Pigtail
- Data centers and enterprise networks
- Parallel optical transmission in high-performance computing environments
Advantages
- Hig density (4/8/12/16/24 fibers per ferrule)
- Scalability (Support 40G/100G/400G networks)
- Reduce downtime (MPO connectors enable quick reconfiguration and easier troubleshooting)
- Flexibility (MPO connectors can be used in a variety of configurations)
| Fiber Type | SM | MM |
| Insertion Loss | < 0.5 dB | < 0.7 dB |
| Return Loss | APC> 50 Db, PC> 40Db | / |
| Life Time | > 500 cycles | |
| Working Temperature | -40°C to + 70°C | |
| Storage Temperature | -40℃ to + 85℃ | |
| Fiber Polish | APC / PC / UPC | |
| Connector Type | Male / Female | |
| Boot Choices | Standard / Short / Long | |
| Compliance | IEC 61754-7, RoHs 2.0 | |
| Ferrule Cores | 4, 8, 12, 16, 24, 32, 48 | |
FAQ
1.What are you selling ?
We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor.
2.Whats the MOQ?
MOQ is flexible based on the products type.
3.Whats the best price you can offer?
The unit price will vary according to the material you want and the quantity you order.
4.Do you support customization?
Yes ,customization is available according to your product requirements.
5.Can I get a sample first?
Yes ,Warmly welcome.
6.Can I add my own logo?
Yes.OEM and ODM are available .
