| Brand Name: | HACEN |
| MOQ: | 5000PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | Depends on the cavities and toolings |

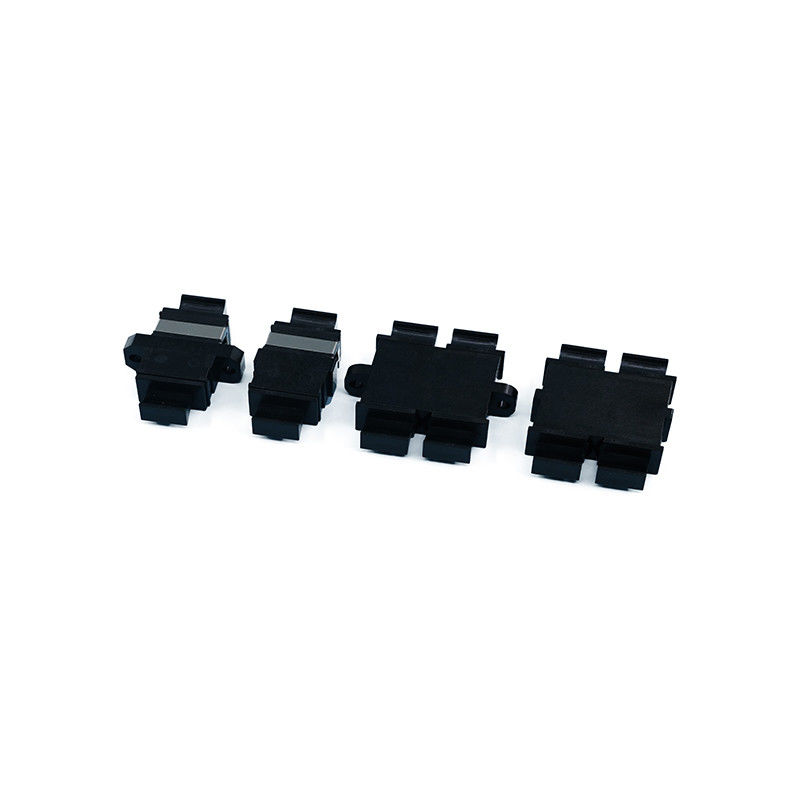

MPO Fiber Optic Adapter for network LAN telcommunication coupler
Fiber optic adapter (also called flange, coupler) is a fiber optic connector docking components, including FC, SC, ST, LC, MTRJ, MU and switching between products such as ST-SC, FC-ST etc., are widely used in optical distribution frame (ODF), optical fiber communication equipment, instrumentation, stable and reliable performance.
Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- High Precision Alignment
- Good Wearability
- Good interchangeability
- Good Temperature characteristic
- Good repeatability
Applications
- CATV
- Local Area Networks (LANs)
- Data processing networks
- Wide Area Networks (WANs)
- Test equipment
Environmental & Mechanical Data
| Operating Temperature | -40 to +75º C |
| Storage Temperature: | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High temperature (61300-2-18) | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat (61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
| Adapter Material | Plastic |
| Adapter Color | Black,Blue,Green,Aqua, |
FAQ
1.What are you selling ?
We are a factory with 15years experience in high-precision mold design and development as well as plastic product injection .including fiber communication parts, consumer electronic products, Medical Products, Auto parts, especially good at fiber communication field ,like fiber topic connector kits ,fiber adaptor
2.Whats the MOQ?
MOQ is flexible based on the products type.
3.Whats the best price you can offer?
The unit price will vary according to the material you want and the quantity you order
4.Do you support customization?
Yes ,customization is available according to your product requirements.
5.Can I get a sample first?
Yes ,we welcome
6.Can I add my own logo?
Yes.OEM and ODM is available .
7.What is your quality control for your fiber optic product ?
1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
